QK006

Kiosk QK006 Specification :

• Physical dimensions: Height 1497xWidth 400xThickness 430mm


• Net weight: 30kg

• Cabinet material: all steel plate, metal paint

• Main control: industrial control motherboard

• CPU: Intel Core Duo l5 2.5G

• Memory: third generation memory 4GB

• Hard drive: solid state drive 128GB

• Operatingsystem:Windows 10 64-bit Professional

• Monitor: 17-inch LCD monitor(1024*1280)

• Touch screen:17-inch multi-point capacitive touch screen

• Printer:80mm thermal printer

• Printing speed:200mm/sec

• Printing paper width:80mm

• Cutter life: more than 1 million times

• Paper loading method: front replacement paper

• Second generation lD card: supports second and third generation lD cards

• Scanner: supports one-dimensional code and two-dimensional codeCamera:500W monocular camera, supports face recognitionPower supply: 300W

• Input voltage: AC 220V 50Hz

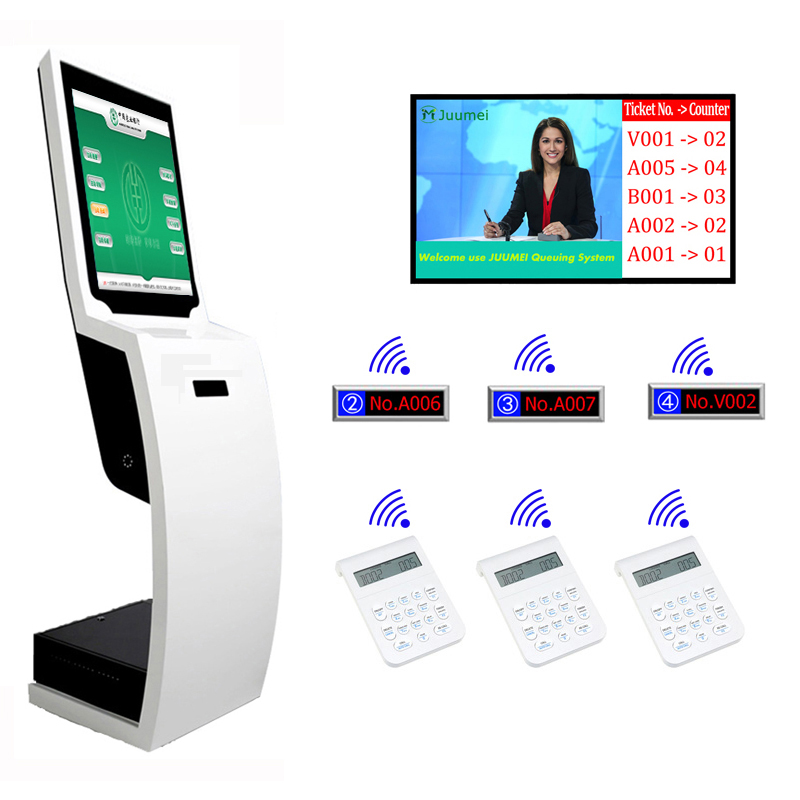

Diagram :
